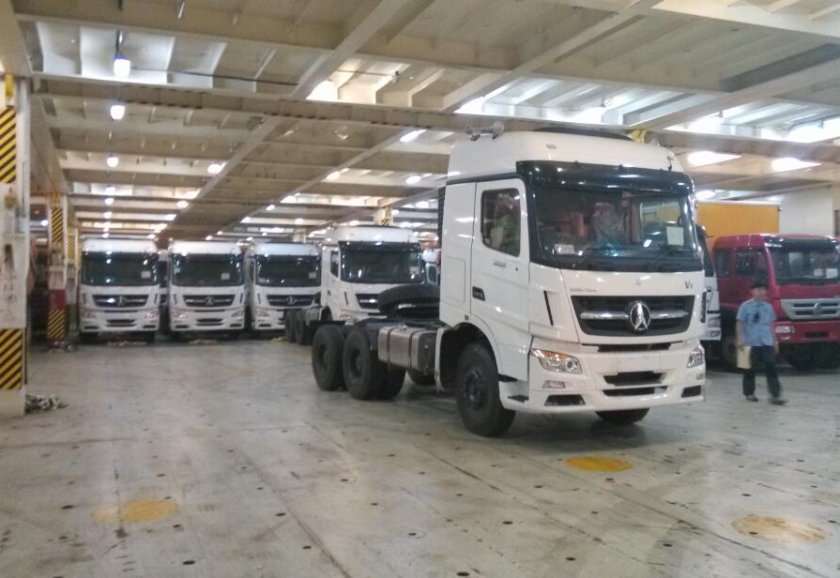

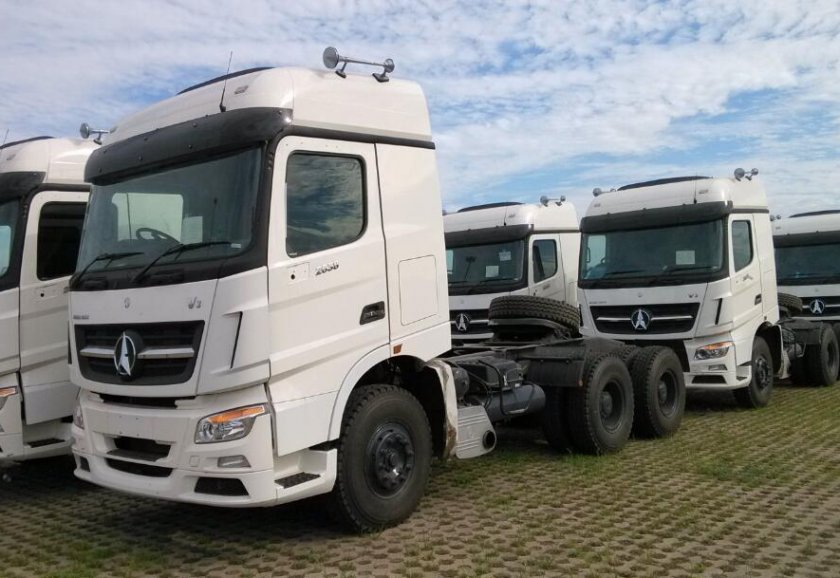

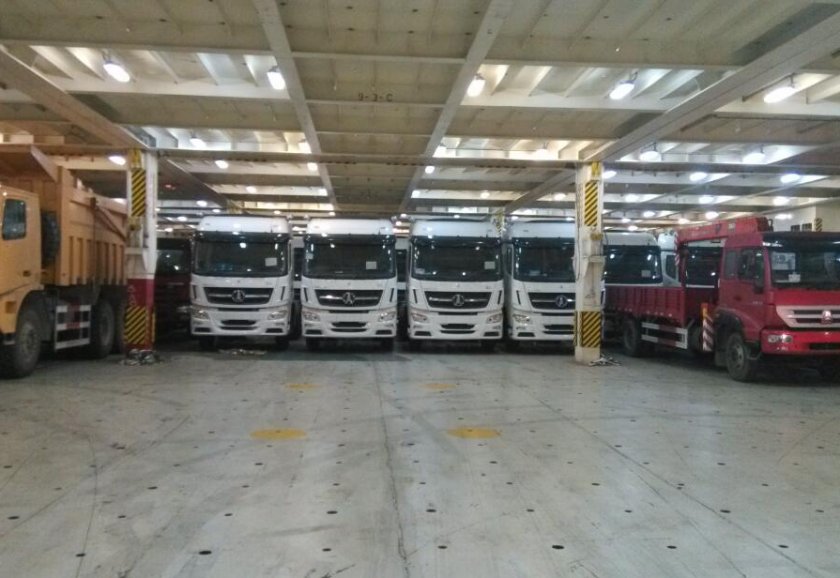

NORTH BENZ V3 6X4 Tractor Truck

Model

 ND42501B34J7

Driver's cab

Long High cabin, two sleepers with A/C

Engine

Maker: WEICHAI

Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & inter cooling

Engine model: WP12.420E32

EURO II/EUROIII emission standard

Maximum output:420hp@2200rpm

Number of cylinder:6

Displacement: 11.926L

Clutch

Single-plate dry coil-spring clutch,diameter 420mm,hydraulically operating with air assistance

Transmission

Fuller 12JS200T transmission.

Front Axle

Benz  7.5tons drum brake

Rear Axle

Benz type double reduction drive axle, ratio=5.2

Steering

TAS85

Wheel & Types

Rims:8.5-20

Tyre:12.00R20

Optional: 12R22.5//315/80R22.5

Radial tire is optional

Electrics

Operating voltage: 24V,negative grounded

Dimensions in mm

Wheel base   :   3450+1450

Overall size:   7050x2500x3840

Weight in kg

Kerb. mass:  8800 kg

Total mass: 40000kg

Performance

Maximum driving speed(km/h)           90

Fifth wheel

          16070kg

The manufacture reserves the right of technical alteration/change for better improvement prior notice
