Products

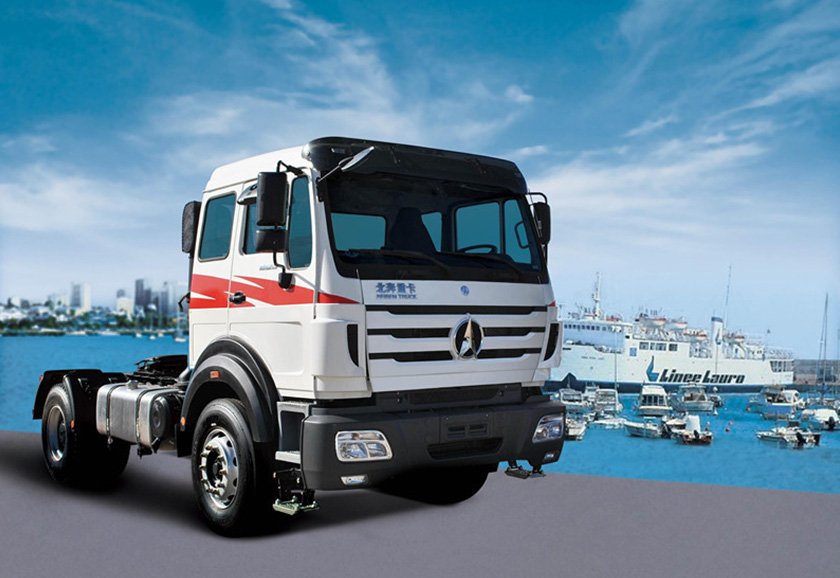

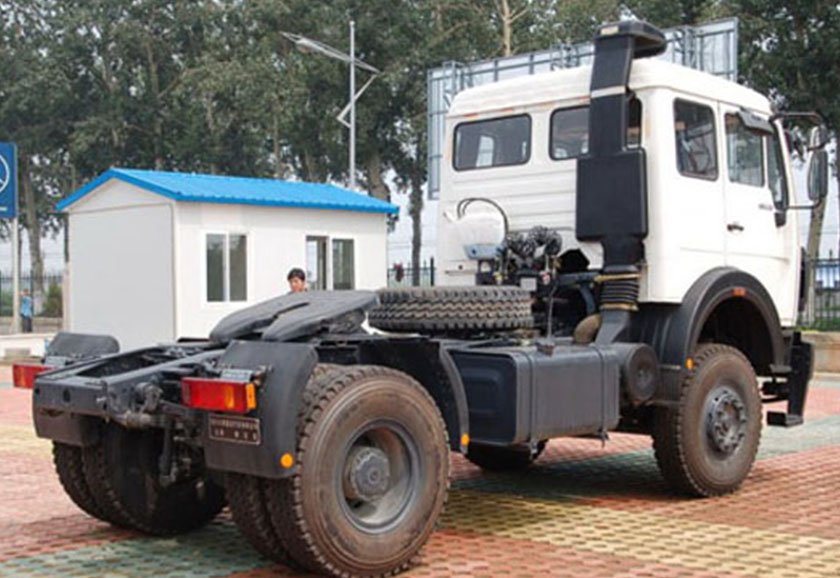

Beiben NG80 1829SY 4x2 290hp Tractor Head

Model

ND41805A35J

Driving type

LHD (Right Hand Drive is optional

Driver's cab

Long cabin, single sleeper,

Engine

Maker: WEICHAI


Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling

Engine model: WP10.290E32

EURO II/EUROIII emission standard

Maximum output:290HP @2200 rpm

Number of cylinder:6

Displacement: 9.726L

Clutch

430mm, hydraulically operating with air assistance

Transmission

FULLER Brand transmission.

Front Axle

Benz front axle 6.5 tons

Rear Axle

Benz TYPE double reduction drive axle

Steering

TAS85


Option: ZF8098, hydraulic steering with power assistance

Wheel & Types

Tyres: 315/80R22.5


Optional: 12R22.5//12.00R20


Radial tire and tubeless tire is optional

Electrics

Operating voltage: 24V, negative grounded

Dimensions in mm

Wheel base:                            3500


Overall size:                        6300×2495×3260

Weight in kg

Kerb weight                             5800


Permissible trailing capacity              35870

Performance

Maximum driving speed(km/h)             90

The manufacture reserves the right of technical alteration/change

for better improvement prior notice
