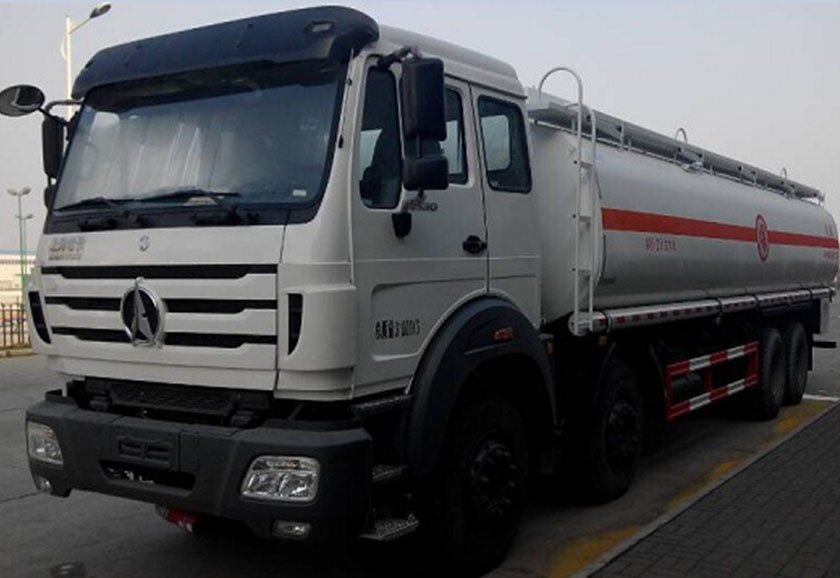

BEI BEN 6X4 Fuel Truck | |
Model | ND5257GJYZ |
Driving type | LHD (Right Hand Drive is optional） |
Driver's cab | long cabin, with one sleeper |
Engine | Maker: WEICHAI |
Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & intercooling | |
Engine model: WP10.290E32 EURO II/EUROIII emission standard | |
Maximum output: 290hp @2200 rpm | |
Number of cylinder:6 | |
Displacement: 9.726L | |
Clutch | 430mm, hydraulically operating with air assistance |
Transmission | FULLER Brand transmission. |
Front Axle | Benz front axle 7.5 tons |
Rear Axle | Benz TYPE double reduction drive axle |
Steering | TAS85 |
Option: ZF8098, hydraulic steering with power assistance | |
Wheel & Types | Tyres: 12.00-20 |
Optional: 12.00R20/12R22.5 | |
Radial tire and tubeless tire is optional | |
Electrics | Operating voltage: 24V, negative grounded |
Dimensions in mm | Wheel base: 4450+1450 |
Overall size: 9465x2500x3305 | |
Weight in kg | Kerb weight 12270 |
Permissible trailing capacity 25000 | |
Performance | Maximum driving speed(km/h) 90 |
Fuel tank: | 19 CBM |
The manufacture reserves the right of technical alteration/change for better improvement prior notice | |
