Drive System | LHD (RHD can be optional) | |
Traction type | 6x4 | |
Cabin | NG80 Short Cabin, Air Conditioner | |
Engine | Brand | WEICHAI |
Model | WP10.340E32 | |
Rated power | 340hp | |
Engine displacement | 9.726 liters | |
Gearbox | FAST 12 Speeds (12JS200T) | |
Clutch | Ф430 Diaphragm type | |
Steering | ZF8098 | |
Axle | Front | BEIEBN 7.5 Ton |
Rear | BEIBEN 13 Ton double reduction axle, ratio:5.921 | |
Max. running speed (km/h) | 85 | |
Tire | 12.00R20 | |
Spring | 10/13 | |
Fuel tank | 300L | |
Kerb weight (kg) | 12200 | |
Total mass (kg) | 25000 | |
Wheel base (mm) | 4100+1450 | |
Overhang (mm) (front/rear) | 1410/1920 | |
Track (mm) (front/rear) | 1995/1800 | |
Approach / departure angle(°) | 26/32 | |
Dimensions（L*W*H）(mm) | Overall | 8530x2500x3430 |
Dump body | 5400x2300x1500 | |
Thickness (mm) | Bottom 8 , front 6mm,side 4 | |

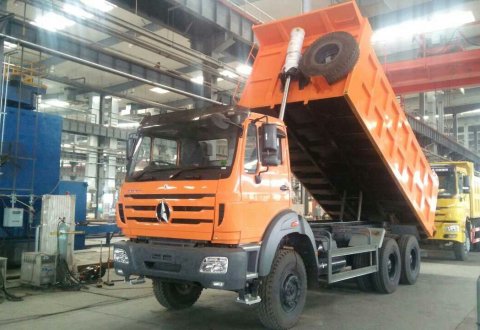

Hydraulic lifting system | Middle lifting | |
