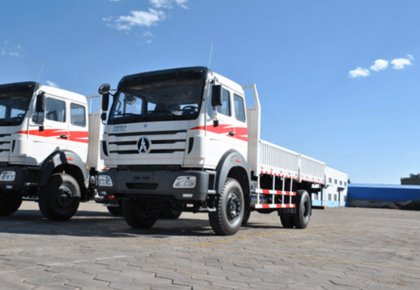

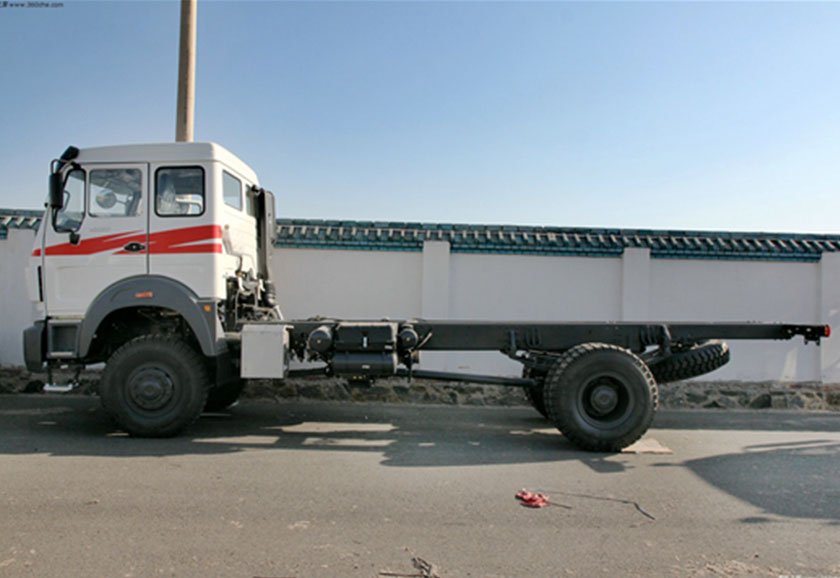

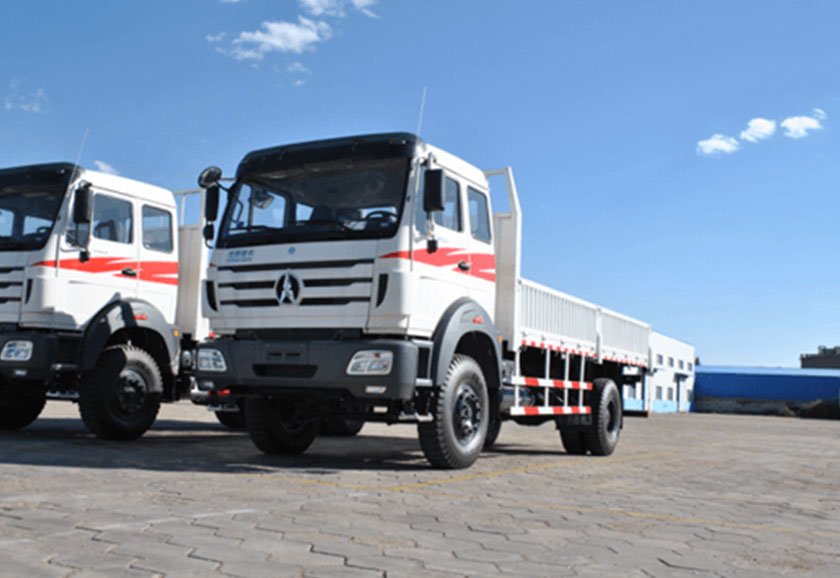

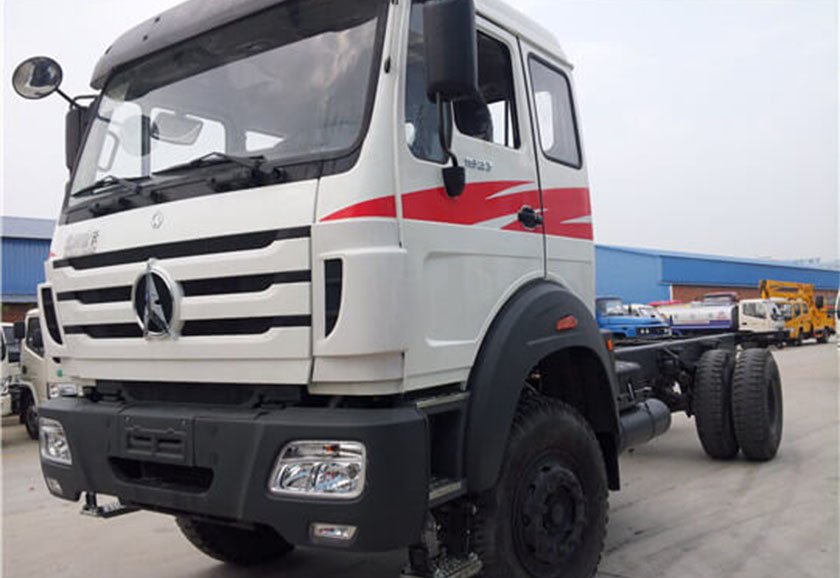

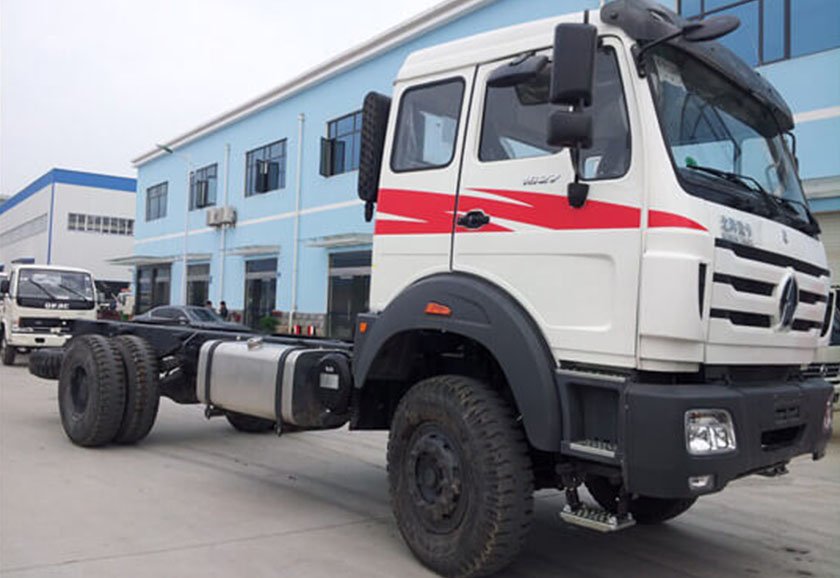

Beiben NG80B 4x2 Cargo Truck

Chinese Brand:

North Pennines cards

English brand :

Notice batch :

247

Exemption:

No

Engine

Engine Manufacturer

Displacement (ml)

Power (kw)

WP10.336
WP10.375

Weichai Power Co., Ltd.
Weichai Power Co., Ltd.

9726
9726

247
276

Engine brand :

Fuel type:

Diesel (mm)

Dimensions:

7390,7790 × 2500 × 3340 (mm)

Compartment Size :

4560,4960,4800,5200 × 2300 × 600 (mm)

The total mass :

16000 (Kg)

Quality of the utilization factor:

1.01

Curb weight:

7950 (Kg)

Load weight :

7920 (Kg)

Quality Trailer :

(kg)

Semitrailer saddle :

Cab:

Front passenger :

2 ( human )

Rated capacity :

( People )

ABS :

No

Approach / departure angle :

30/41 ()

Front / rear overhang :

1410/1880 (mm)

Axle load:

6000/ 10000

Wheelbase:

4100,4500 (mm)

Number of axes:

2

Maximum speed:

90 (km / h)

Fuel consumption:

Spring:

10/ 8 +6

Number of tires :

6

Tire Size:

14.00R20,12.00 R20

Front track:

2070

Rear track:

2040

Brake Front:

After braking :

Built before the parade :

After operating system :

Steering Type :

Steering wheel

Starting method:

Chassis Emission standard:

GB3847-2005, GB17691-2005 National

Transmission Type:

According to the standard :

Release date:

20130410

Logo Enterprises :

Minnesota Mining and Manufacturing membrane structure ( Shanghai ) Co., Ltd.

Vin Vehicle Identification Number:

LBZF26CB

Vehicle Notes :

Off-road vehicle when the rated load mass 7000kg, total mass 15080kg. Wheelbase of 4100 when : car length 7390 , container steeplechase ( length ) of 4560 or 4800 ; wheelbase of 4500 when : car length 7790 , container steeplechase ( length ) of 4960 or 5200 . Guard material Q235A, bolted connections, the rear guard section size (mm) 50 × 100, ground clearance is 500mm. This car has been equipped with tachograph .
