Overall dimension(l*w*h)(mm)

8347×2500×3310

Driving model

6*4

Wheel base (mm)

3800+1450

Wheel distance (front/rear)(mm)

1995/1800

Track( Front/ rear) (mm)

1410/1870

Approach/Departure angle ( º )

26/32

Max. speed (km/h)

90

GVW(road) (kg)

250000

Complete vehicle kerb(kg)

12200

Engine

WP12.420, water-cooled,

four strokes, 6 cylinders in line,turbocharged, directly injection

Rated power (kw/rpm)

308/2200 (420hp)

Max torque (Nm/rpm)

1460/1200-1600

Fuel tank capacity (L)

300(steel)

Clutch

430, Single dry frictional disc

Gearbox

12JS200T , mechanism, 12gears, 2 reverse gear, manual

Front axle



Double-shoe pneumatic brake, non-driving steering axle

Middle/Rear axle



Air brake by double-shoes,

whole casting casing, double reduction rear axle

Steering box

ZF8098 Circulating ball power steering, hydraulic assisted

Frame



Fish belly shape, variable width,

variable section, side beam structure,

bilateral bend, cross section channel reinforced steel beam

Suspension

Front: longitudinal laminated leaf-spring ,

hydraulic telescopic shock absorber

Rear: longitudinal laminated leaf-spring ,equalizing suspension

Tire

12.00R20

Braking

Service brake

Brake gap can be adjusted automatically,

double circulation air brake system

Parking brake

Spring loaded brake cylinder on rear axles

Assistant brake

Engine exhaust brake

Electrical system

Starter

5.58KW/24V

Alternator

28V/70A

Battery

2 x 12V-135Ah

Cab



NG80B short cab, full steel material structure, Interior A/C

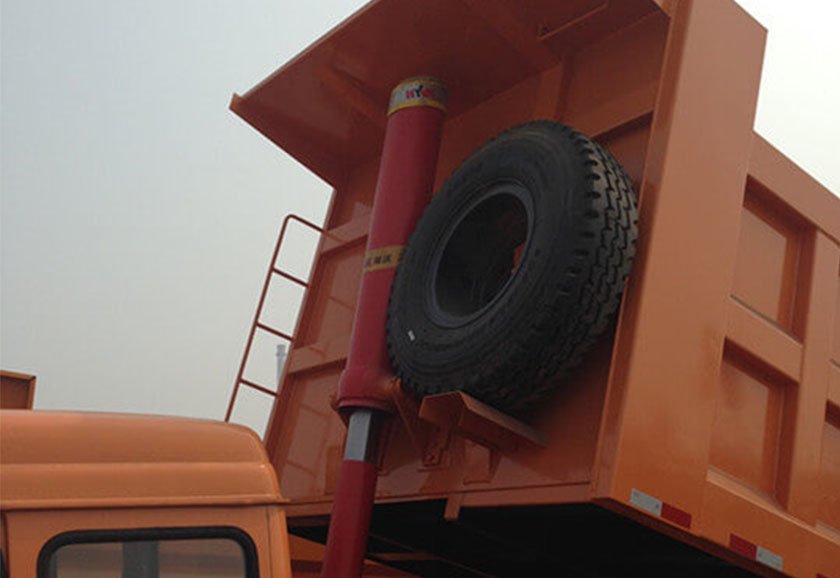

Up body

5800x2300x1500mm

Bottom 8mm, side 6mm
