Traction type

6X4

Driving type

Left hand driving (RHD can be optional)

Dimension(Lx W xH)unloaded

10650×2500×3900

Bucket dimension((Lx W xH)

6500X2300X800

Approaching angle/Departure angle°

26/20

Overhang(front/rear) (mm)

1410/2666

Wheel base (mm)

5050+1450

Max speedkm/h

90

Curb weightkg

11300

Loading Weightkg

30,000

Engine

Steyr technology, made in China

Model:WP10.290E32

water-cooledfour strokes6 cylinders in lineturbocharged, directly injection With the exhaust valve brake, EGR (gas exhausted recycling), deisel engine

DisplacementL

11.596/Diesel

Bore X stroke (mm)

126/155

Max powerkw/rpm

213/2200 (290hp)

Max torqueNm/rpm

1250/1300-1600

Emission

EURO III

Fuel tankerL

400

Clutch

Model

430 Diaphragm type

Gearbox

Model

9JS135 (Fuller)

mechanism,9gears,1reverse gear, manual,

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

D50

Frame

Fish belly, shape, variable width, variable sections, side beam structure

Front axle (Mercedes Benz  Technology)

7.5T Benz: Double-shoe pneumatic brake, non-driving steering axle



Middle and Rear axle (Mercedes Benz Technology)

13T benz: Double-shoe pneumatic brake, casting, double reduction driving axles with inter-wheel & inter-axles differential locks



Tyre

12.00-20 bias tyre Number of tyre:10+1 spare

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Mercedes-Benz technology NG80 short Cabin with air-conditioner

Full steel skeleton structure, covered with double layer steel plate;

Can be tipped forwardly;

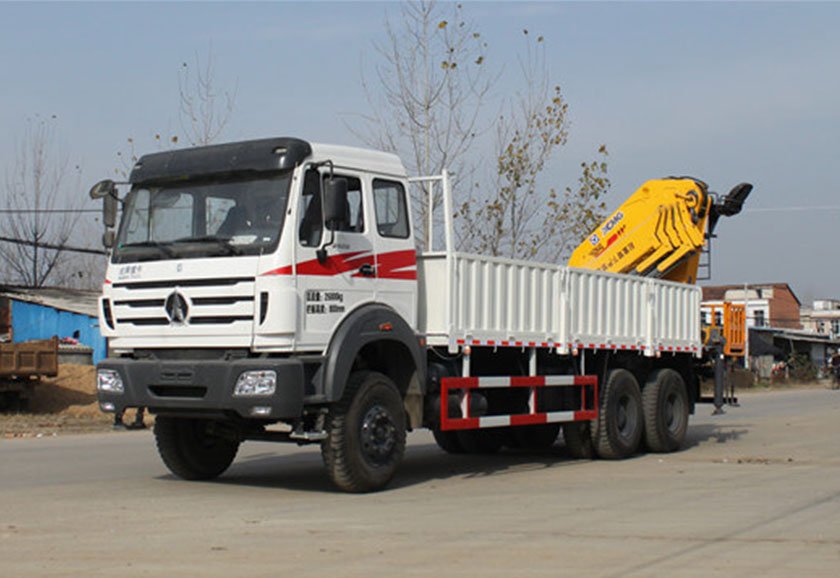

                       Crane

Crane brand

XCMG

Crane model

SQ16ZK4Q

Rated payload

16T

Dimension(L*W*H)mm

4098*2522*2462
